Product Code: SP/INT/005-A

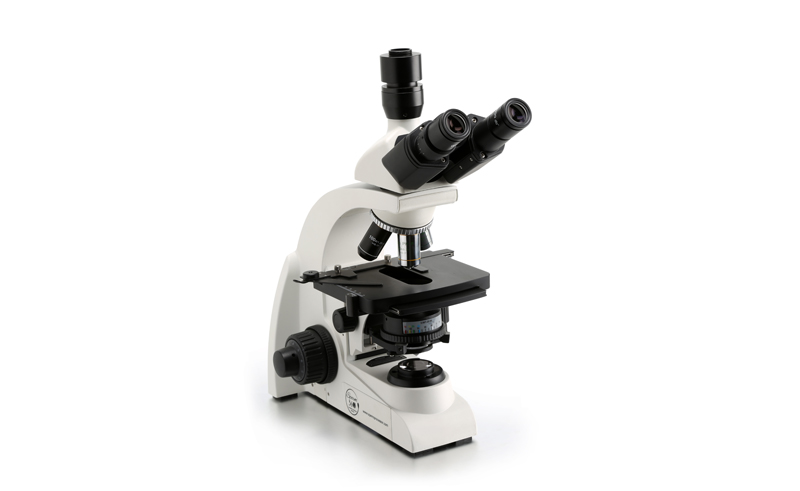

SpermVision is a phase contrast microscope 10X & 20 X phase optics with 40X & 100X bright field optics
with all standard configurations.


Technical Specifications:

  • UCIS Infinity Independent Achromatic Optical System
  • WF 10x plan eyepieces, 20mm field of view, high eye point up to 21mm
  • Seidentopf Trinocular viewing head inclined at 300, Rotatable for 3600
  • + 5 diopter adjustment
  • Phase Contrast Slides support for 10x & 20x objective lens
  • Quadruple nosepiece inward facing with positive click Stops
  • - 10 x & - 20 x : Positive Phase Contrast Objective Lens
  • - 40 x (S) :  Plan achromatic Objective Lens
  • - 100 x (S): Plan achromatic Objective Lens
  • Rackless mechanical stage : 156 x 138mm platform, with X/Y travel of 76 x 54mm by low-positioned X/Y coaxial control knob, with scale mark and specimen-slide clip, enough space to hold 2 specimen-slide

  • Coaxial coarse and fine focus mechanism with marking, Fine focus sensitivity of 0.001mm
  • Centering Telescope to adjust phase contrast

Maintenance & Care

  • When the microscope is not in use, it must be covered with the dust proof cover.

  • Clean the optical system by alcohol – ether mix with the help of cotton cloth at regular intervals (preferably of 8 to 10 days).

  • Thoroughly clean the objective lens after the use of the oil immersion lens (100x).

  • It is advisable to have one extra piece of halogen lamp (or the concerned illumination lamp) in reserve.

HS & Trade Details

  • Designed By - Sperm Processor Pvt. Ltd.


  • Mfg. By - Sperm Processor Pvt. Ltd.


  • H. S. Code - 901890


  • Country Of Origin - India
